Getting started

Start from @napi-rs/cli

The recommend way.


Install cli

yarn global add @napi-rs/cli
# or
npm install -g @napi-rs/cli
# or
pnpm add -g @napi-rs/cli

Create project

napi new

This will then prompt you for some variables, including:

Package name

The name that will be defined in package.json.

Target platforms

Specify the target platforms you want to support with the native package.

Enable GitHub actions

Opt in for generated GitHub actions that will help publish the native package to the npm registry.

Deep dive

It is recommended to distribute your package under npm scope (opens in a new tab) because @napi-rs/cli by default napi will append the different platform suffixes to the npm package name as the package name for the different platform binary distributions. Using npm scope will help reduce the chance that the package name was already taken.

For example if you want publish package @cool/core, with the macOS x64, Windows x64 and Linux aarch64 supported, @napi-rs/cli will create and publish four packages for you:

  • @cool/core includes just JavaScript codes, which actually load the native binary from per platforms.
  • @cool/core-darwin-x64 for macOS x64 platform.
  • @cool/core-win32-x64 for Windows x64 platform.
  • @cool/core-linux-arm64-gnu for Linux aarch64 platform.

In every platform binary package, there are cpu and os fields in there package.json:

package.json
{
  "name": "@cool/core-darwin-x64",
  "version": "1.0.0",
  "os": ["darwin"],
  "cpu": ["x64"]
}

And @cool/core will be using these native packages as optionalDependencies:

package.json
{
  "name": "@cool/core",
  "version": "1.0.0",
  "optionalDependencies": {
    "@cool/core-darwin-x64": "^1.0.0",
    "@cool/core-win32-x64": "^1.0.0",
    "@cool/core-linux-arm64": "^1.0.0"
  }
}

And the index.js in @cool/core will be:

index.js
const { existsSync, readFileSync } = require('fs')
const { join } = require('path')

const { platform, arch } = process

let nativeBinding = null
let localFileExisted = false
let isMusl = false
let loadError = null

switch (platform) {
  case 'darwin':
    switch (arch) {
      case 'x64':
        localFileExisted = existsSync(join(__dirname, 'core.darwin-x64.node'))
        try {
          if (localFileExisted) {
            nativeBinding = require('./core.darwin-x64.node')
          } else {
            nativeBinding = require('@cool/core-darwin-x64')
          }
        } catch (e) {
          loadError = e
        }
        break
      case 'arm64':
        localFileExisted = existsSync(join(__dirname, 'core.darwin-arm64.node'))
        try {
          if (localFileExisted) {
            nativeBinding = require('./core.darwin-arm64.node')
          } else {
            nativeBinding = require('@cool/core-darwin-arm64')
          }
        } catch (e) {
          loadError = e
        }
        break
      default:
        throw new Error(`Unsupported architecture on macOS: ${arch}`)
    }
    break
  // ...
  default:
    throw new Error(`Unsupported OS: ${platform}, architecture: ${arch}`)
}

if (!nativeBinding) {
  if (loadError) {
    throw loadError
  }
  throw new Error(`Failed to load native binding`)
}

const { plus100 } = nativeBinding

module.exports.plus100 = plus100

The generated index.js file is responsible for loading the right binary file depending on the target platform that is executing the package. The index.js also handles two cases:

Package installed in users node_modules

To load the correct binary, the index.js function tries to load all possible packages for that platform (there may be multiple possible binary packages for a given system and CPU architecture), for example, on the Linux x64 platform, index.js tries to load @cool/core-linux-x64-gnu and @cool/core-linux-x64-musl. The package @cool/core-linux-x64-gnu will be loaded if the user is using an operating system like Ubuntu Debian with gnu libc pre-installed. And if the user is using an operating system like Alpine with musl libc pre-installed, then @cool/core-linux-x64-musl will be loaded.

Local development

The build command in package.json in the project generated by the @napi-rs/cli new command will generate the binary dynamic link library compiled from the Rust code into the current directory for debugging purposes. index.js will also try to load the corresponding binary from the current directory in this case. Again using Linux x64 as an example, the index.js function will try to load the core.linux-x64-gnu.node and core.linux-x64-musl.node files in turn.

IDE support problem

If your IDE refuses to autocomplete/autosuggest code when using the #[napi] macro, you can use the following setting to fix this:

For vscode in settings.json:

{
  "rust-analyzer.procMacro.ignored": { "napi-derive": ["napi"] }
}

For Neovim.

['rust-analyzer'] = {
    procMacro = {
        ignored = {
            ['napi-derive'] = { 'napi' },
        },
    },
},

This problem emits the following error in rust-analyser:

[ERROR proc_macro_api::msg] proc-macro tried to print : `napi` macro expand failed.

Start from GitHub template project

package-template

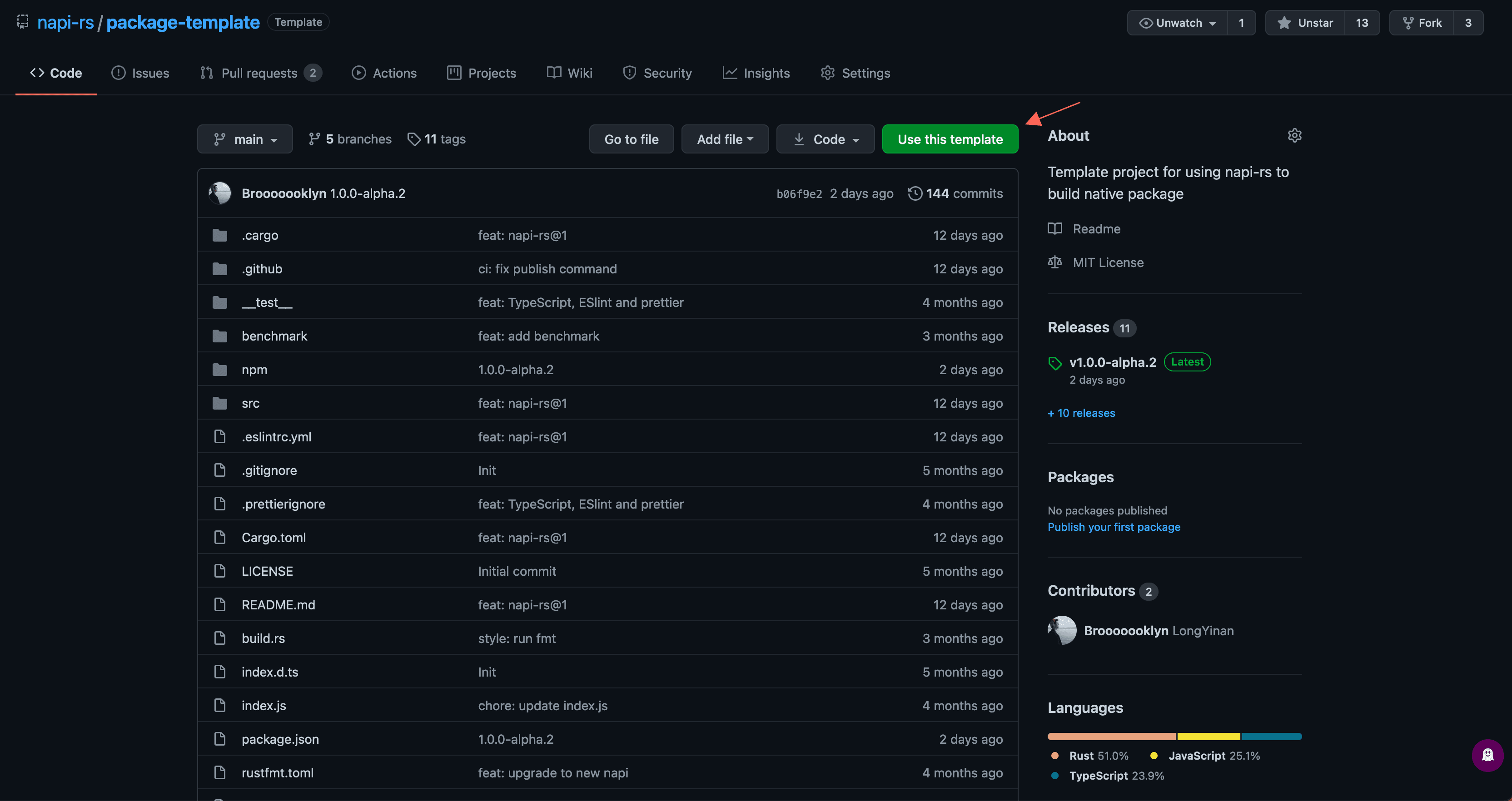

  1. Go to GitHub template project (opens in a new tab)
  2. Click Use this template.
  3. Clone your project.
  4. Run yarn install to install dependencies.
  5. Run npx napi rename command under the project folder to rename your package.
